Owner/Builder: Tom Bryant (@F502 Wicked53),(@53zz502). Chassis — Labes Pro Street Shop (Jody). Fabrication — Loman Rods (Tim & Jim)(@Lo-ManRods). One-off bed panel — Misfit Fabs (James)(@MisfitFab). Engine — X-Metal Engineering. Suppliers — Summit Racing (@SummitRacing), Midwest Early Ford (@MidwestEarlyFord).

Wicked 53 is Tom Bryant’s in-progress ’53 Ford build with a Chevy ZZ502 heart—Ohio steel, Chevy thunder, nothing done halfway. Early on it wore the F502 nickname as a nod to the 502 swap; as the vision hardened, the name that fit was Wicked 53.

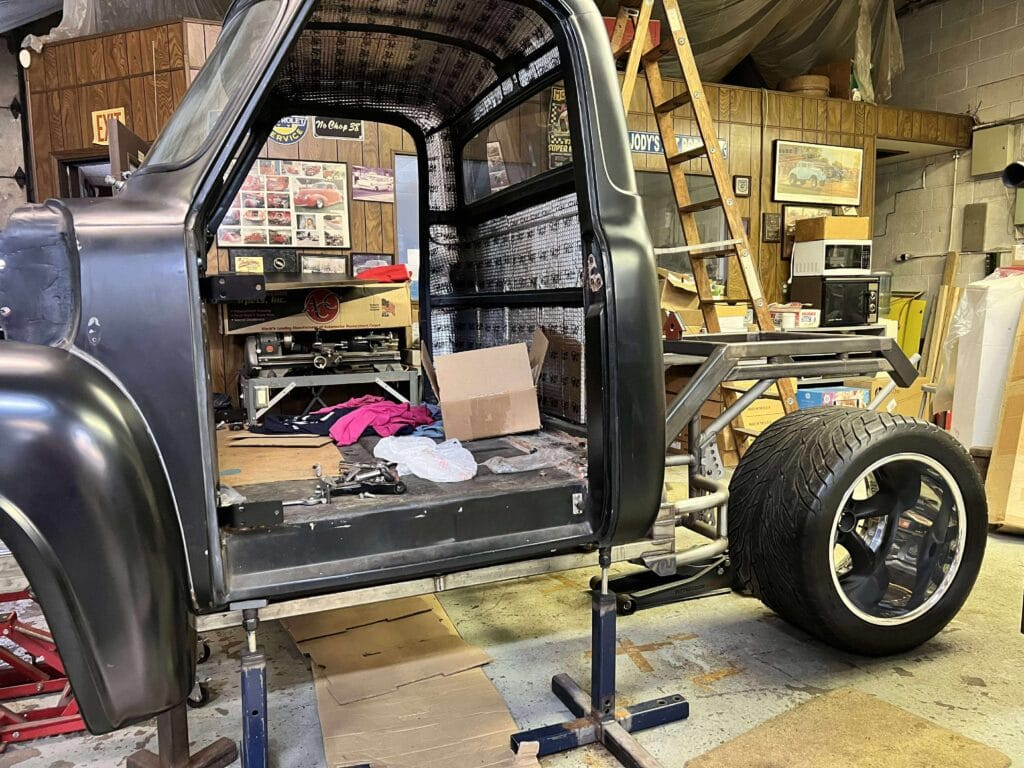

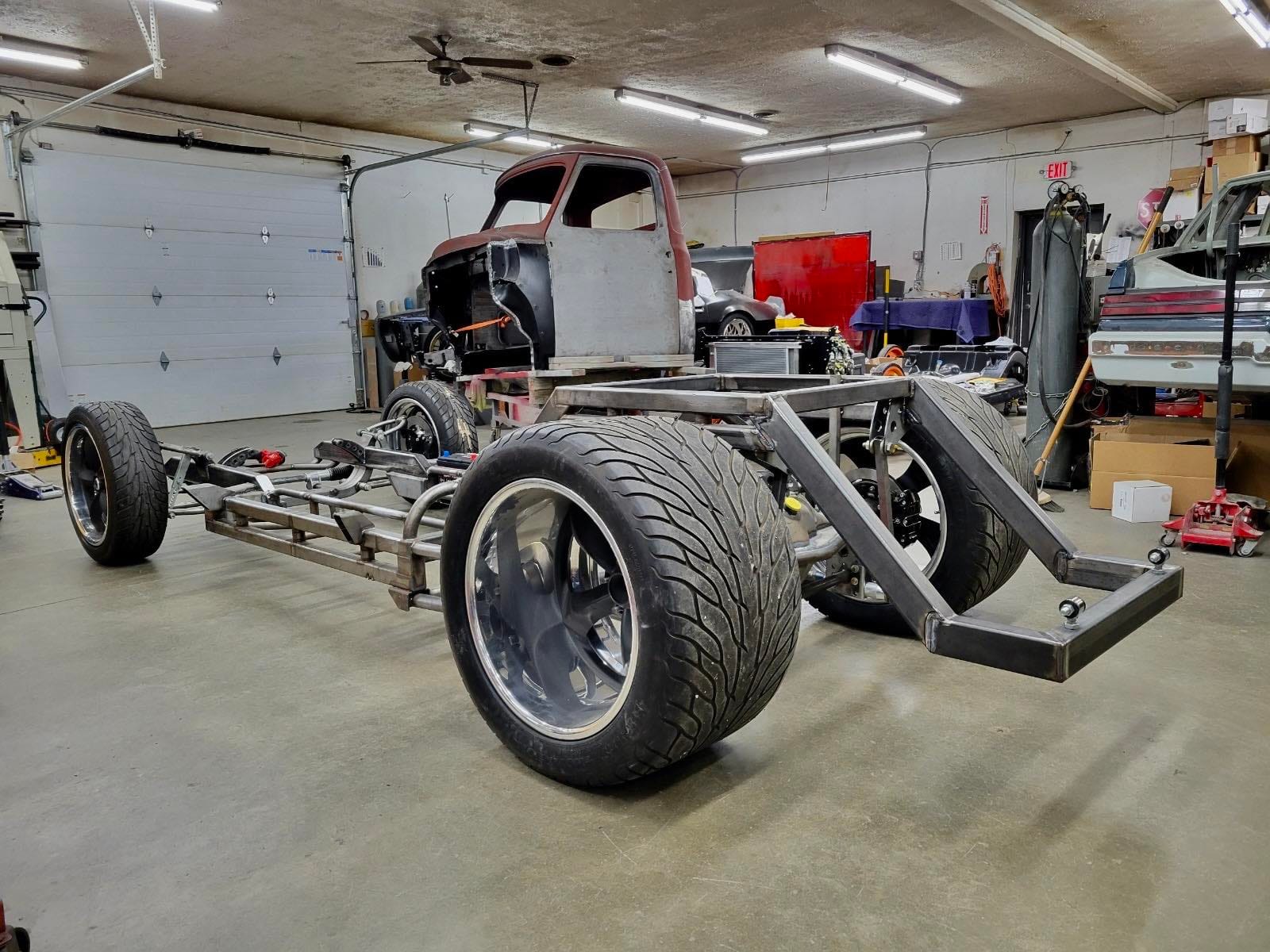

1953 Ford “Wicked 53” cab mocked up on stands with oversized rear tire

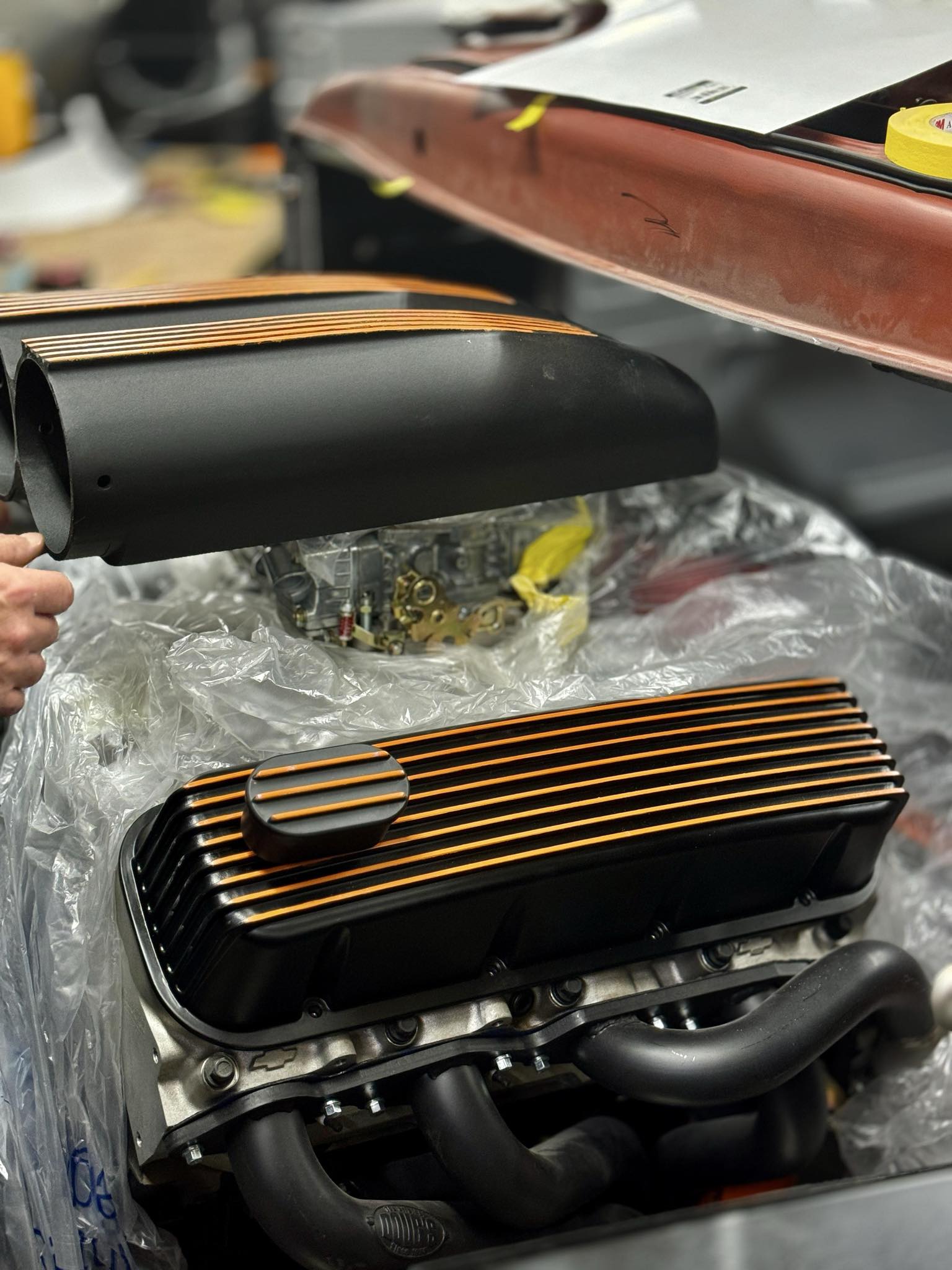

Eleven years in, the story reads in weld beads and shop dust. The centerpiece is an aluminum ZZ502 (8.2L) hand-built at X-Metal Engineering in Evansville, Indiana—because there’s no replacement for displacement, only the discipline to build a chassis that can carry it.

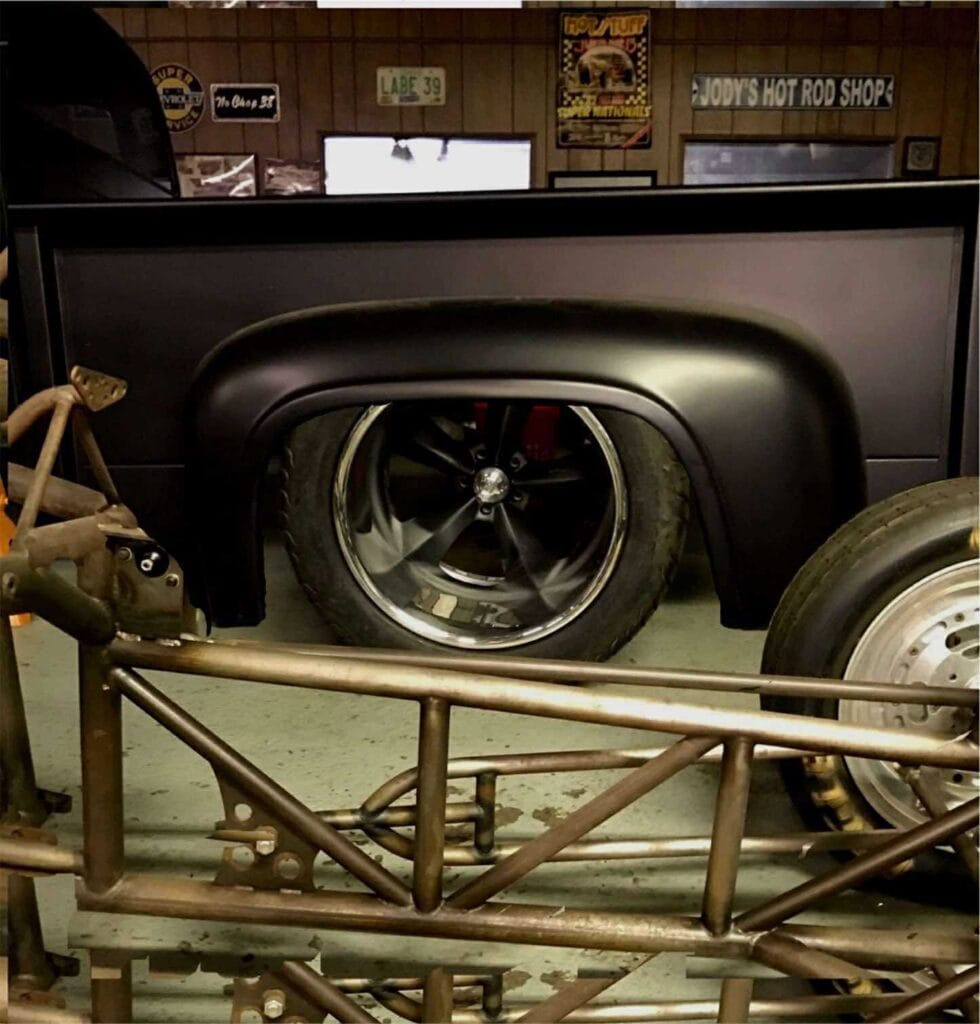

Bed side with wide tire tucked under opening]

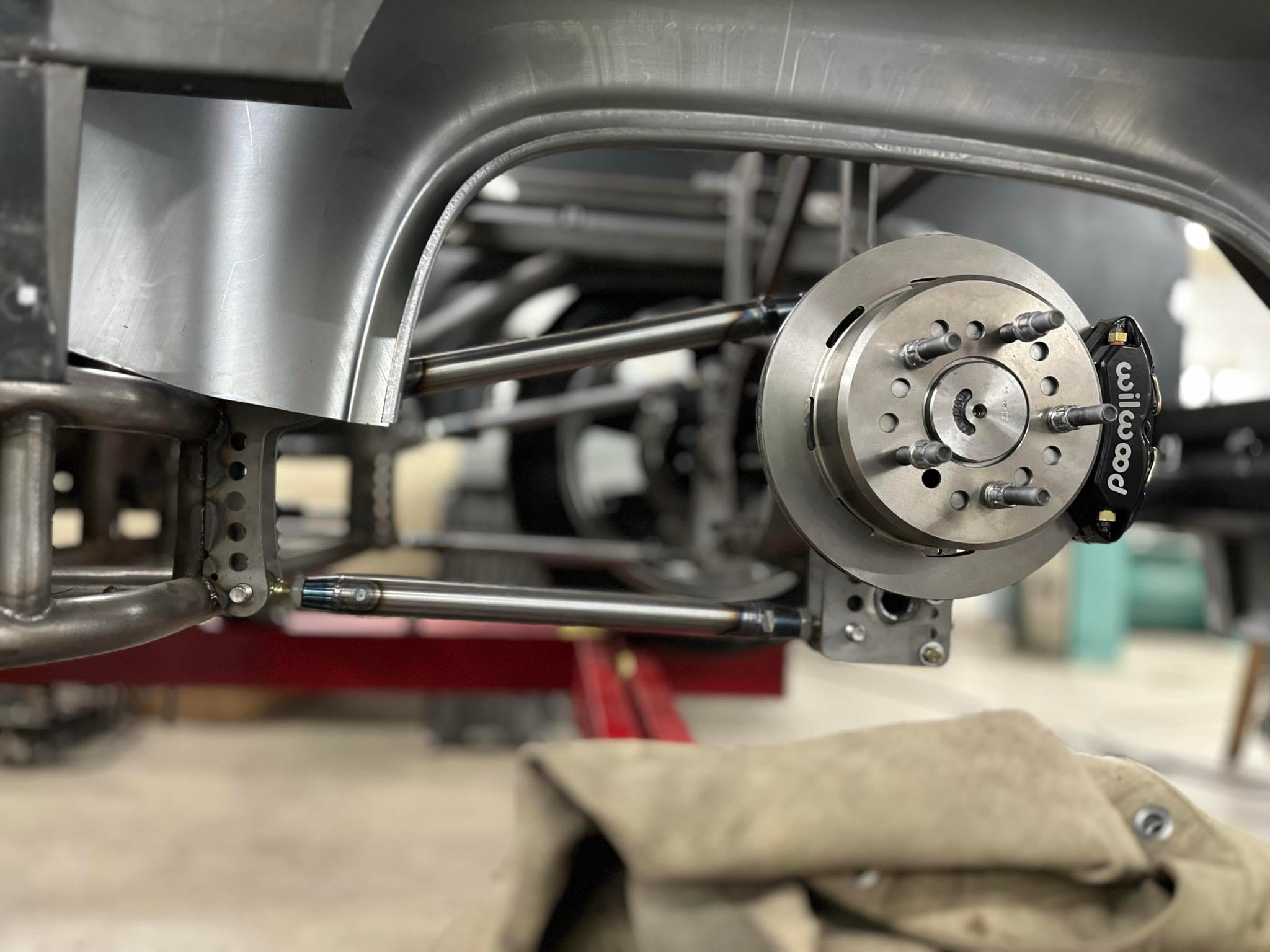

Underneath, it’s purpose over pose. Jody at Labes Pro Street Shop crafted a one-off frame, narrowed the Ford 9-inch, and hung a 4-link with 4.11 Strange gears and Moser axles so this truck plants when the day comes. Mickey Thompson Sportsman tires on American Racing wheels fill the tubs like they were sketched around the stance.

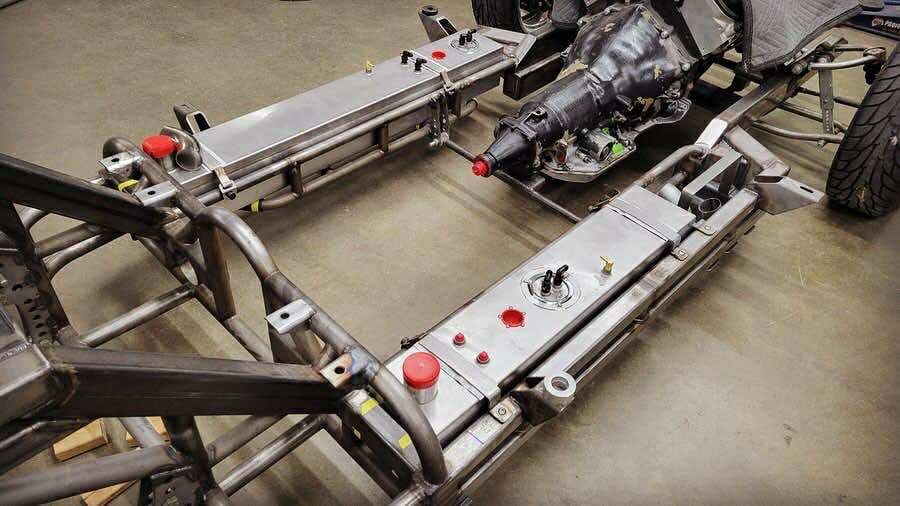

Custom frame with fabricated tanks and transmission in place

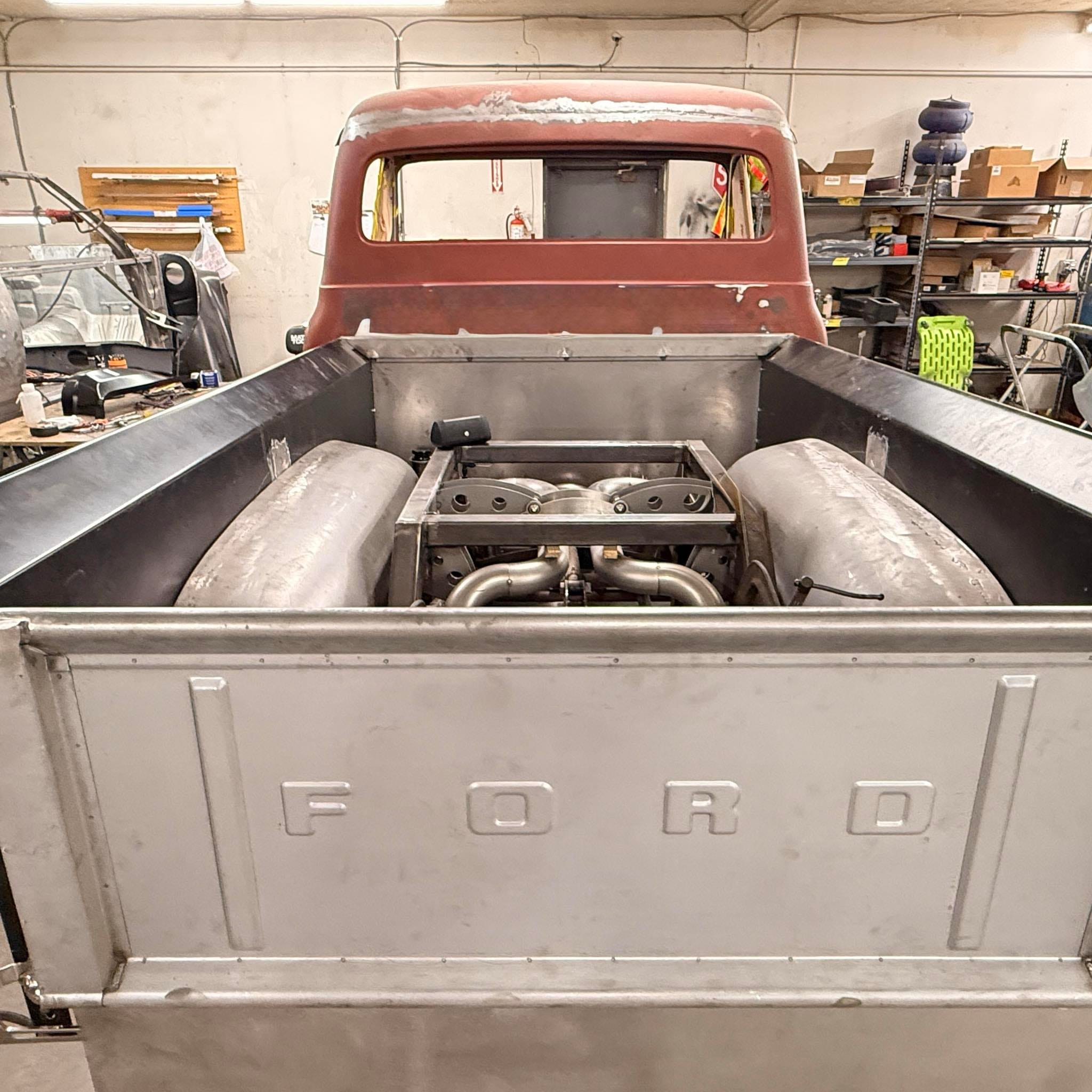

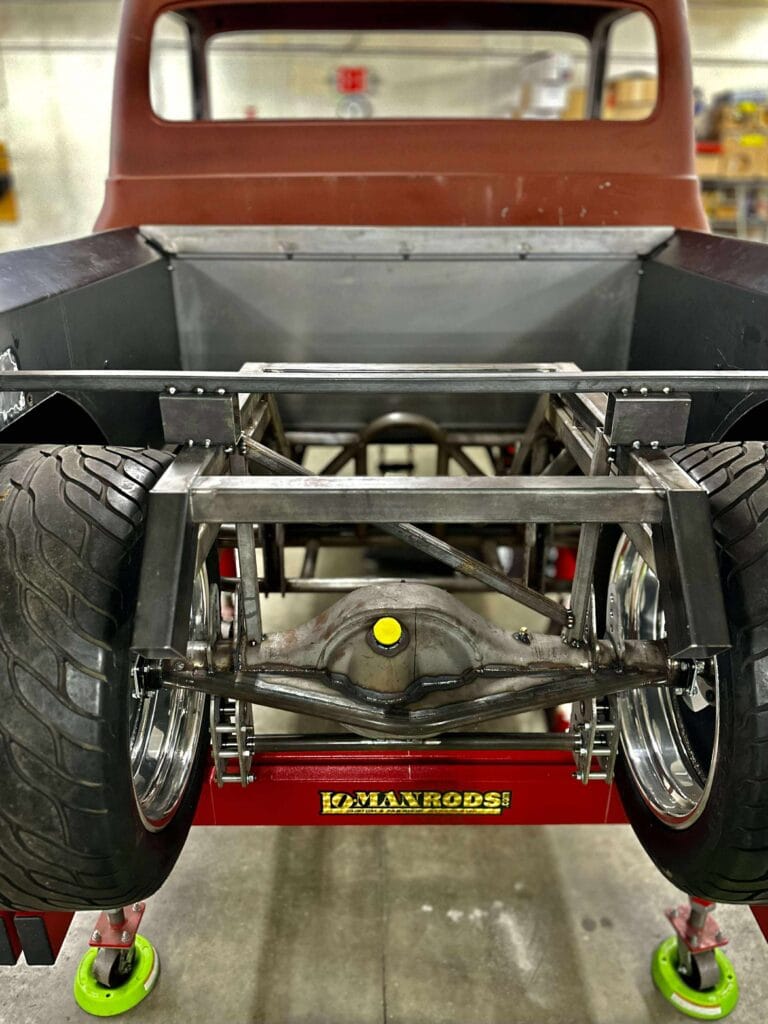

9-inch, links, and tubs visible from the bed

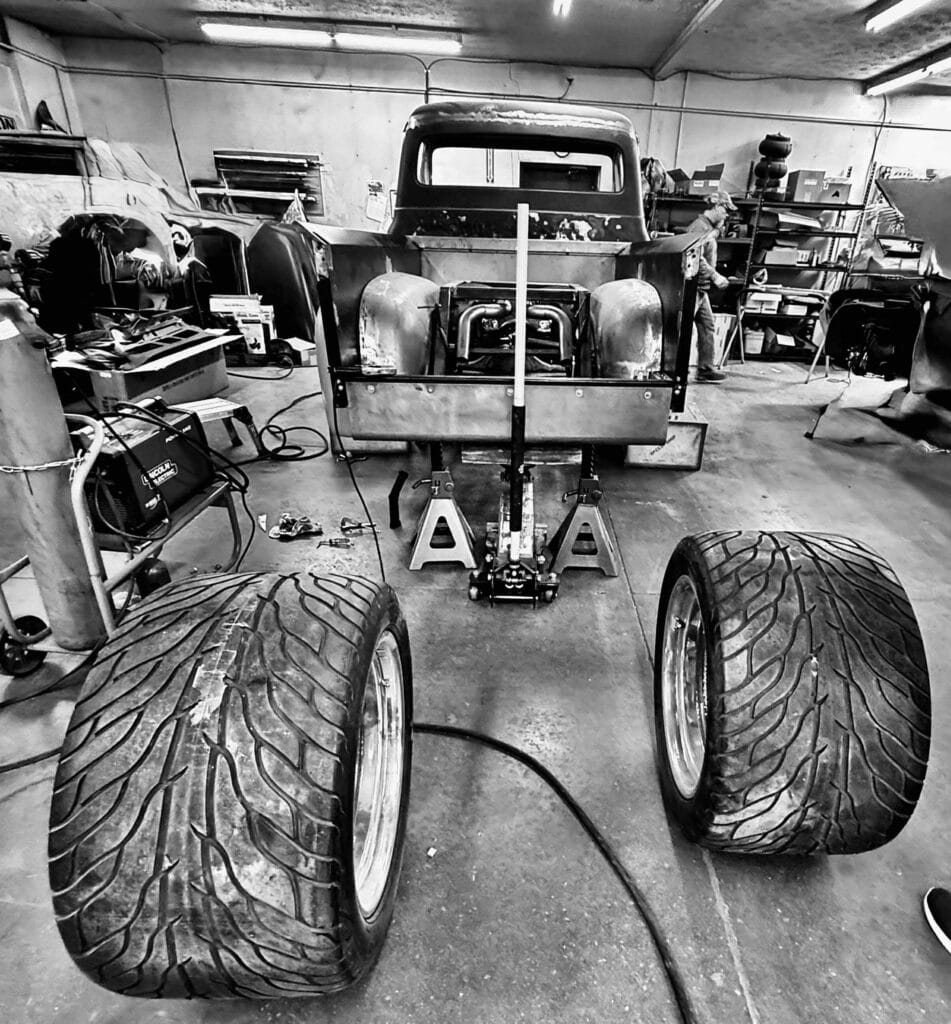

In-progress rear setup on stands with tires removed

Breath in, power out. Doug’s long-tube headers (fabricated by Matt Robbins) feed twin stainless Borla mufflers and a 2.5-inch stainless system. It’s not on the street yet—this is a Feature in Progress—so the soundtrack lives in mock-ups, first-fires, and those shop-light moments when the whole place hums with potential.

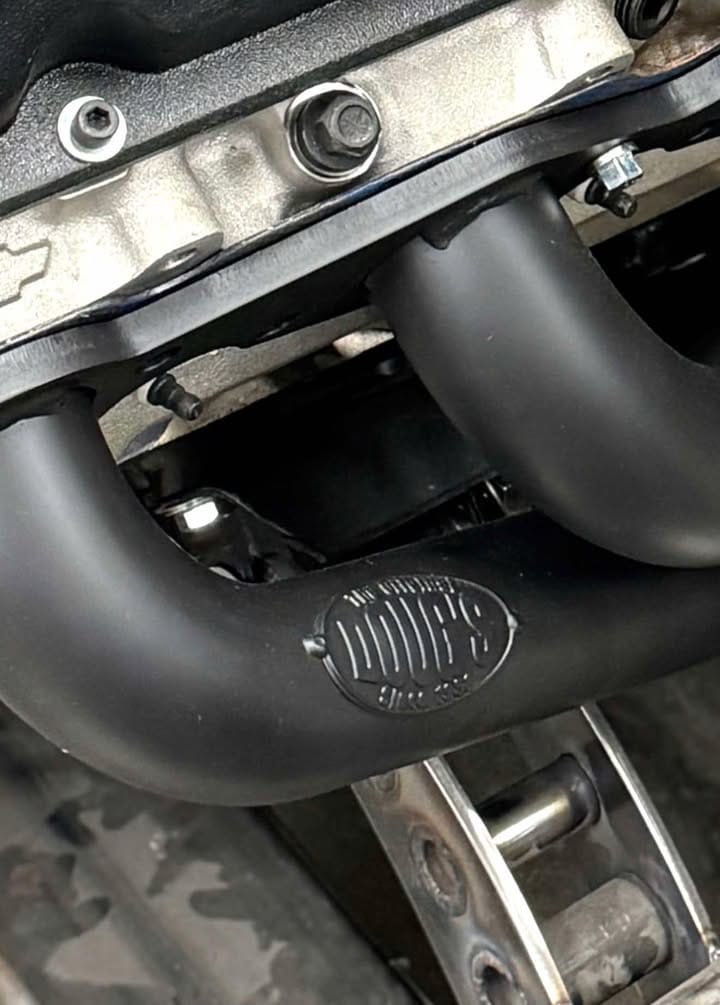

Wicked 53 — Doug’s Headers long-tube, black ceramic, at ZZ502 cylinder head; logo and flange detail visible.

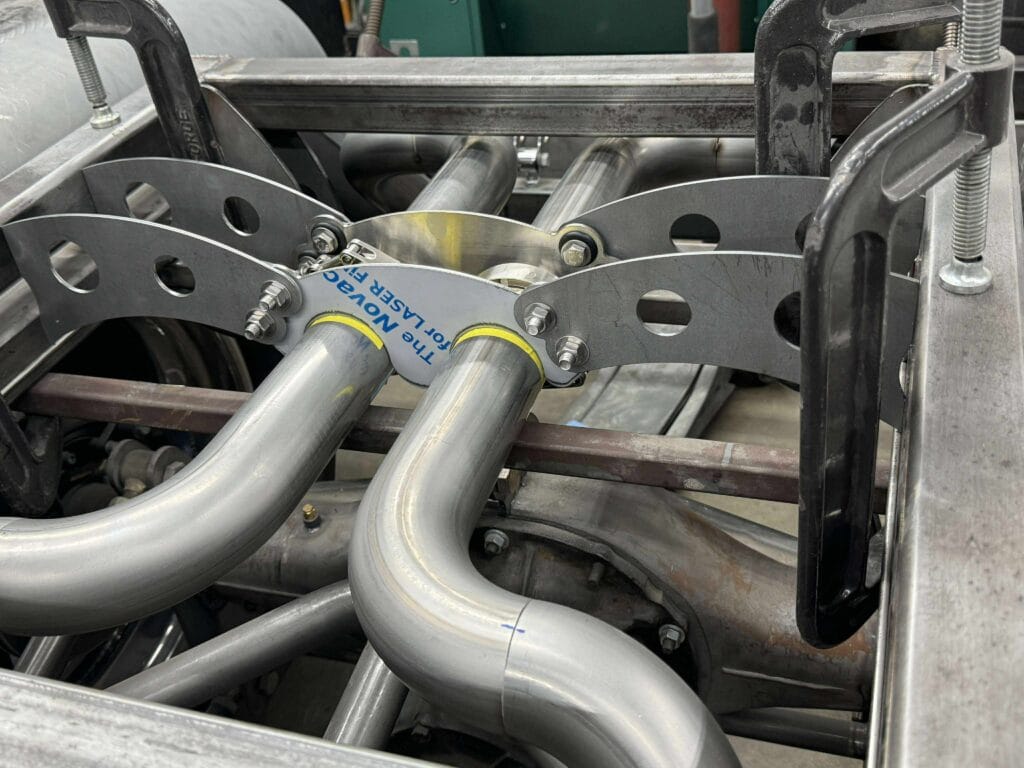

Stainless merge and custom brackets clamped in place

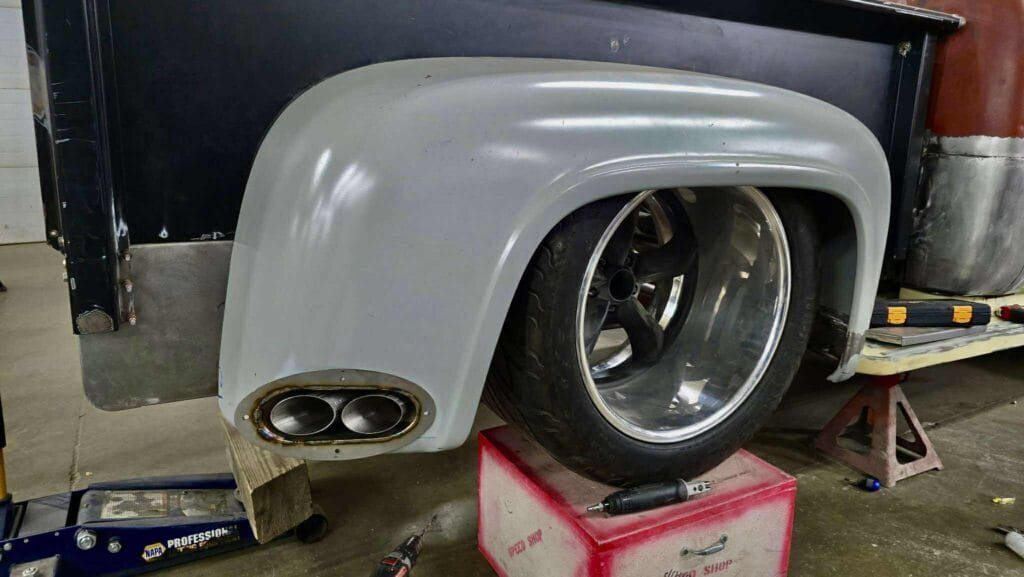

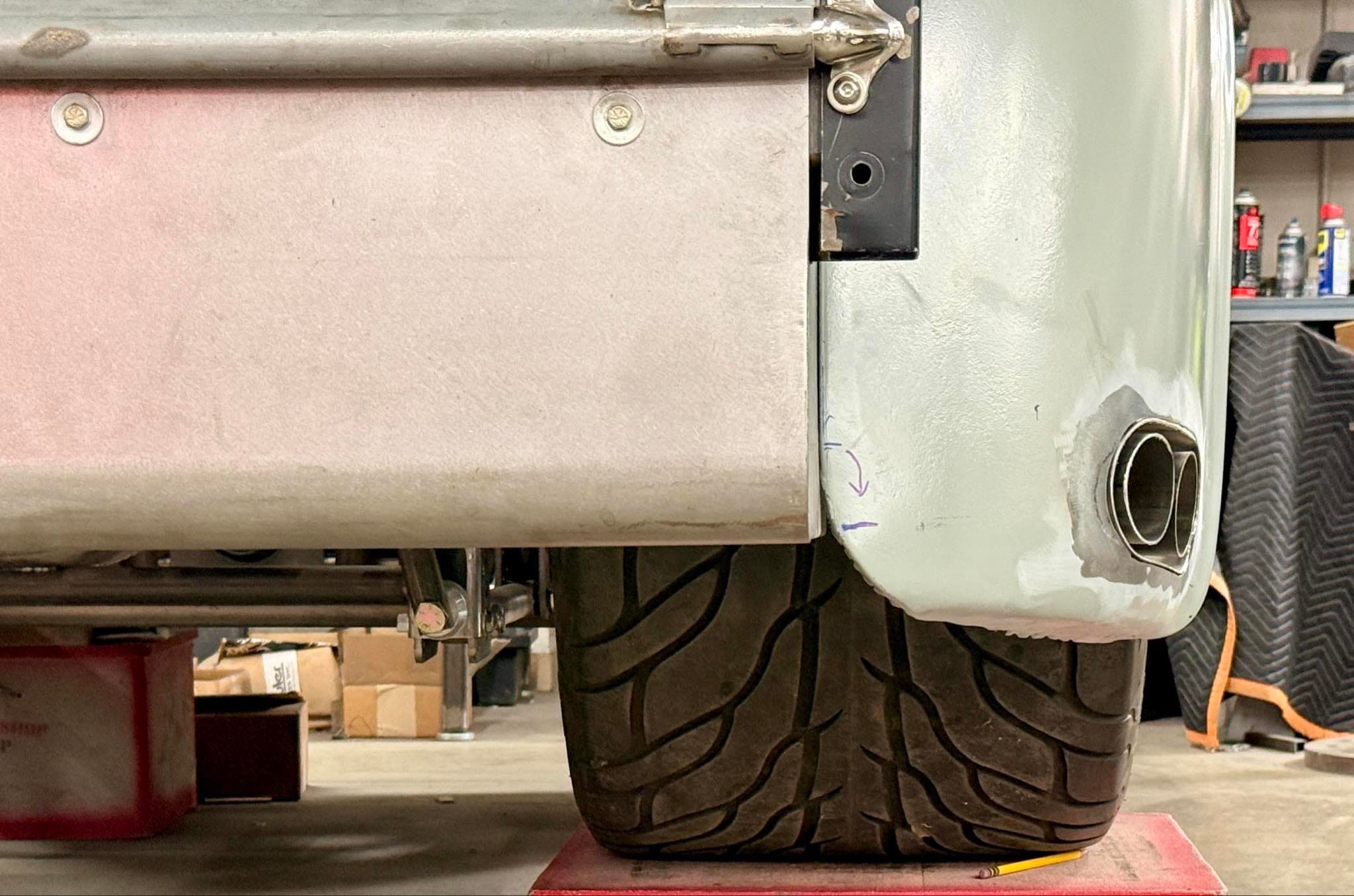

Dual oval exhaust exits integrated into rear fender

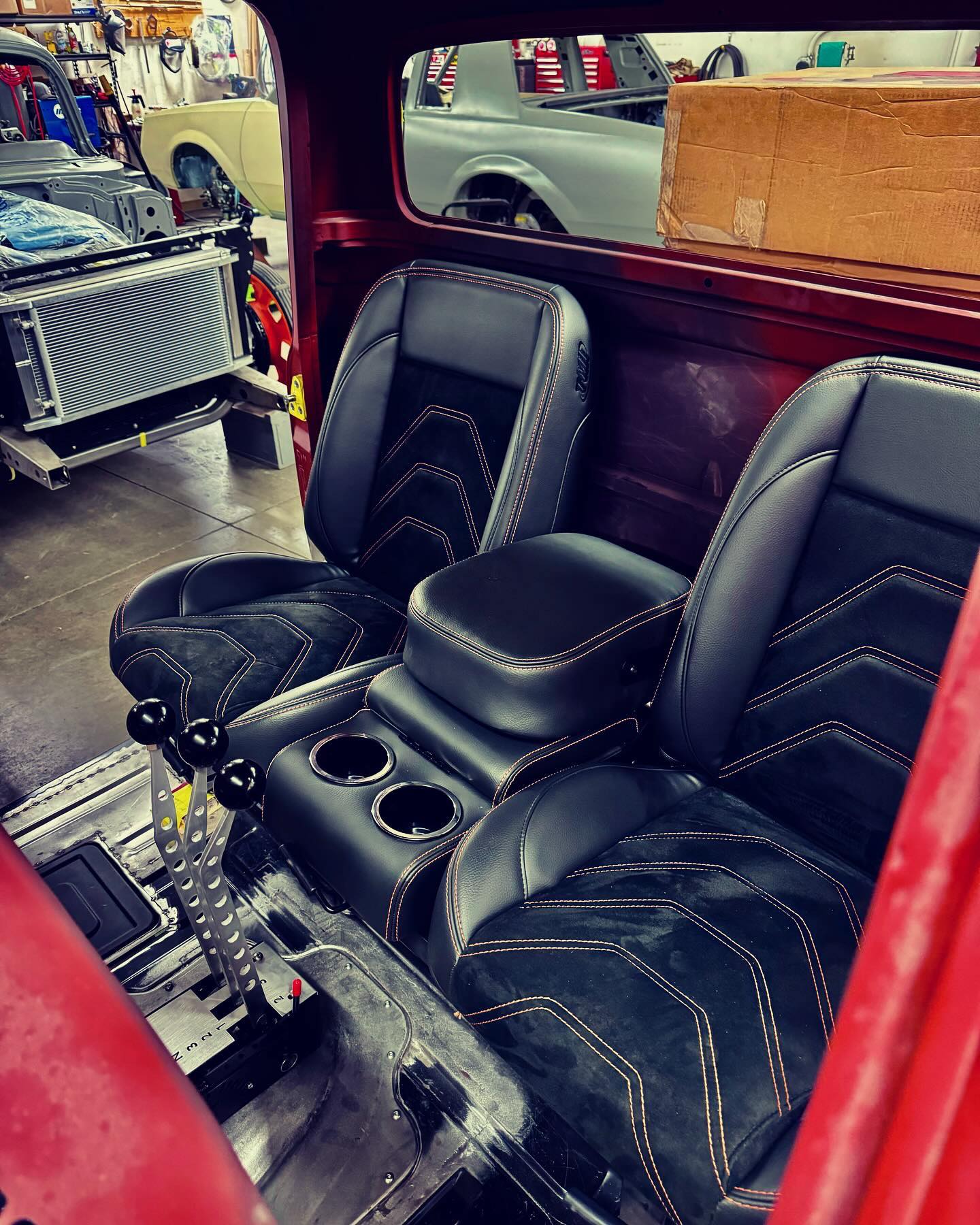

Inside, the cockpit is honest and ready. TMI buckets with clean stitch work, a no-nonsense console, Classic Instruments in the dash, Vintage Air to keep long summer nights from boiling over, and a Flaming River rack with an Ididit column to point it where the fun is. No fluff. All intent.

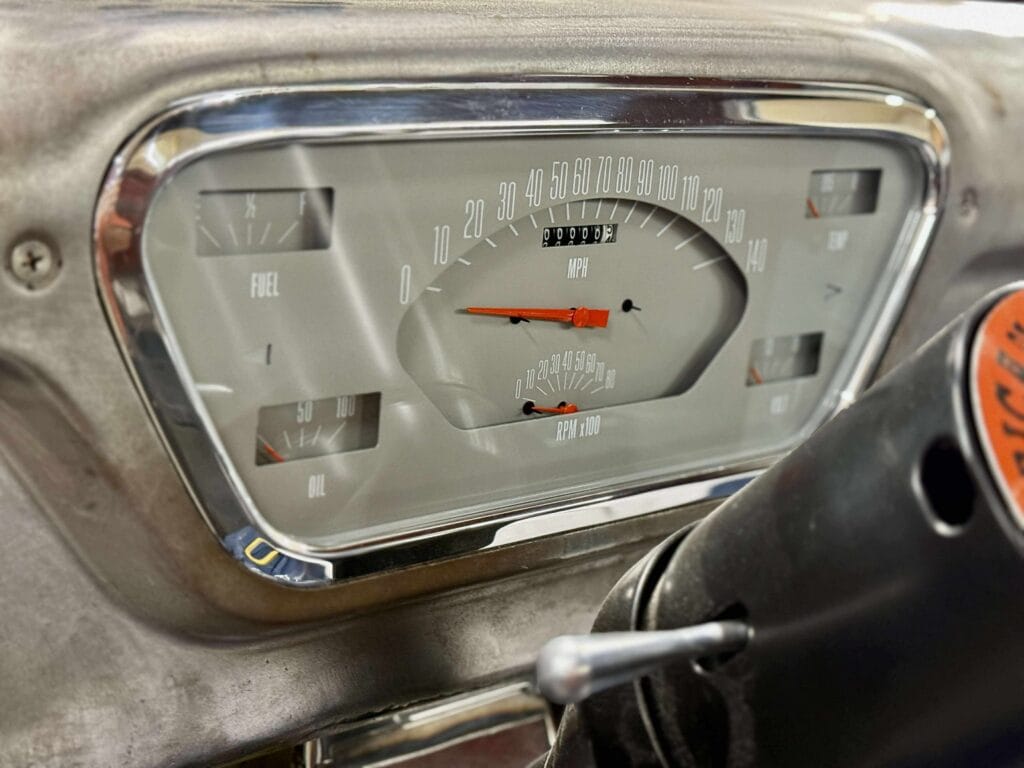

Classic Instruments speedometer and gauges installed

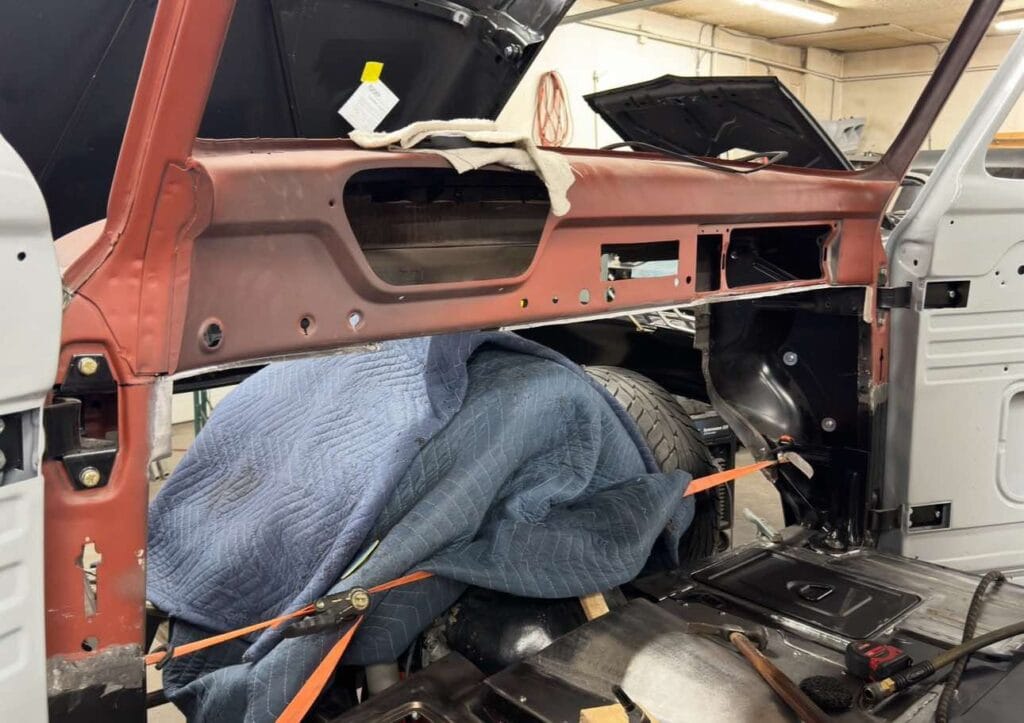

Bare dash opening during mock-up phase

Heat kills builds, so cooling got respect. A custom C&R Racing radiator holds the line up front.

Metal work tells the truth. Three focused years at Lo-Man Rods in Tipp City brought the structure tight; paint by Mac laid down a tone like the eye of a hurricane—calm on the skin, violence coiled underneath.

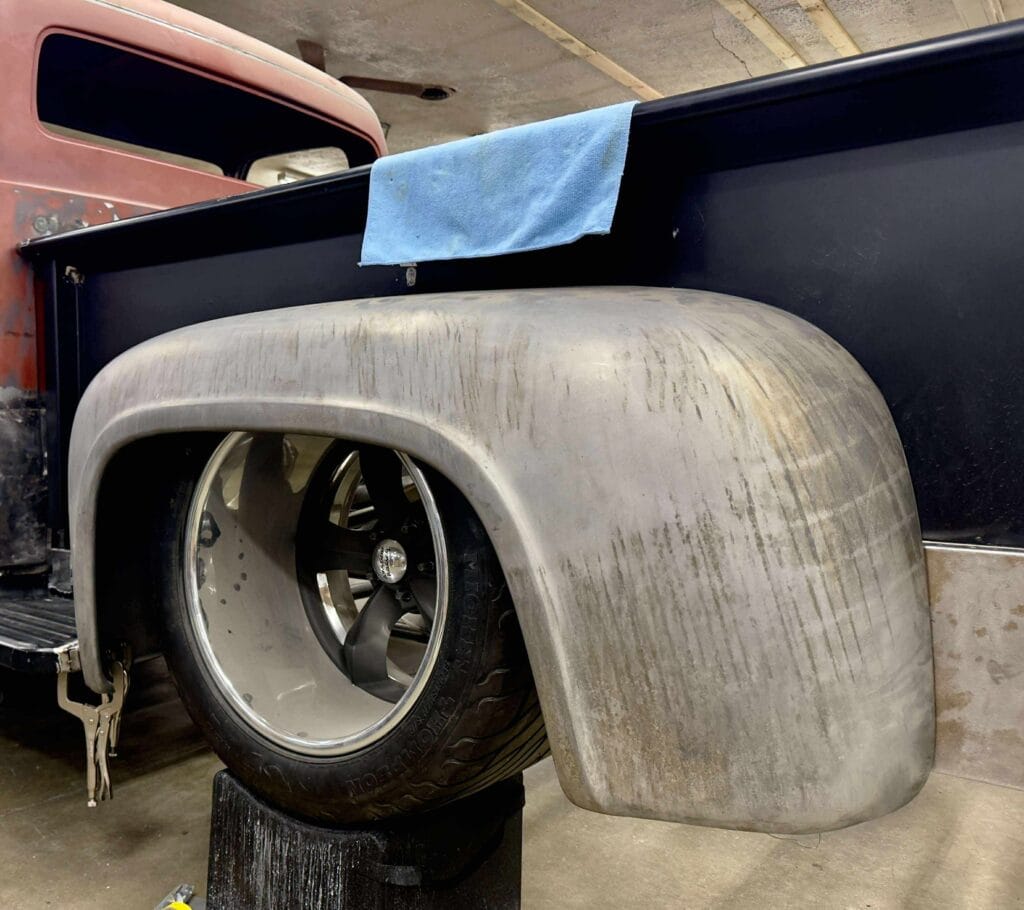

Hand-worked rear fender and tub in bare metal

Here’s the soul of it: so many one-off parts came from friends Tom made across five decades of owning and building—small-batch brackets, clever fixes, and “bring it by” favors that only exist because somebody answered the phone at 9:47 p.m. Wicked 53 isn’t just a parts list; it’s a network of builders welded into one machine.

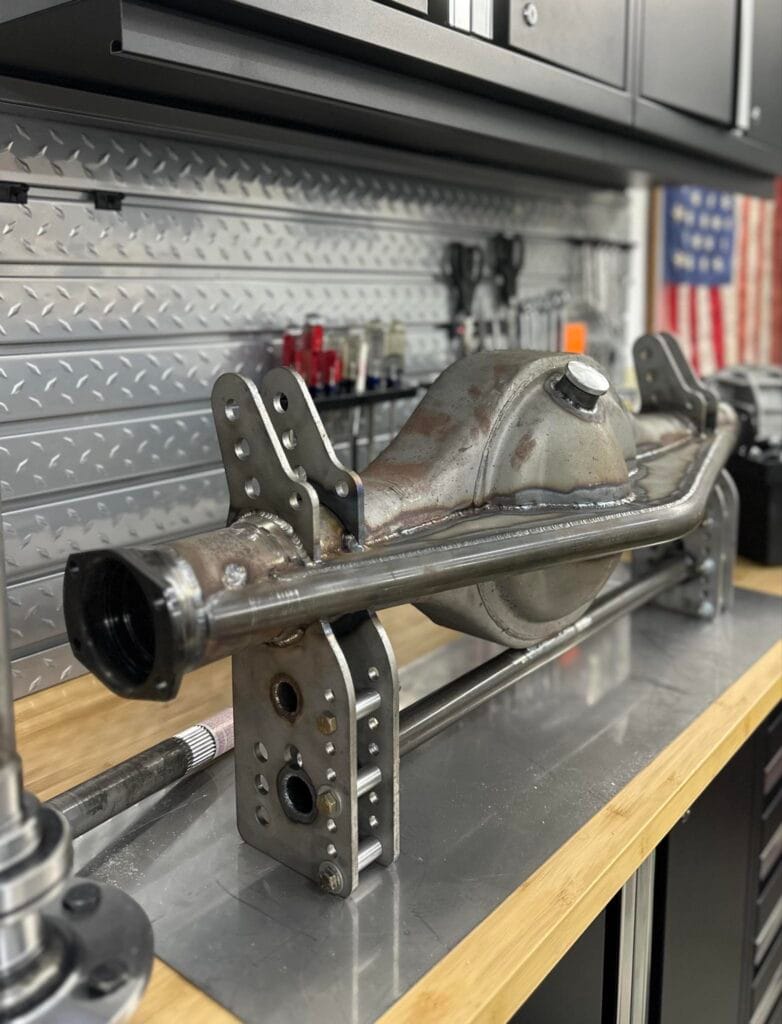

Custom 9 inch Ford Rear end

This truck is for today and tomorrow. Tom’s building it to drive, but he’s also thinking about the Bryants who’ll slide into that seat down the line and learn where they come from the loud way. Wicked 53 is a time machine in the making—memories, mileage, and a family name carried by big-block heartbeat.

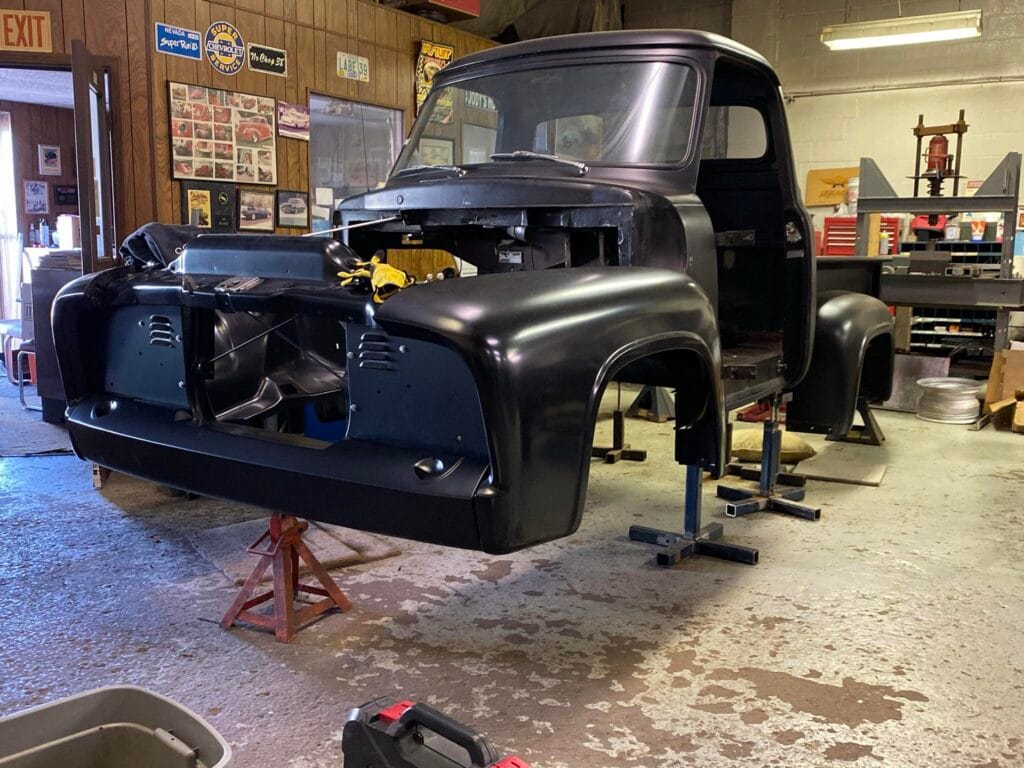

Wicked 53 — 1953 Ford build in progress with cab and front clip in black, mocked up on shop stands during chassis fitment.

Builder Notes & Credits

Tim (master fabricator) and his right-hand Jim at Lo-Man Rods are the ones turning wild ideas into real parts—mocking up 3D-printed templates first, then shaping the one-off pieces that make Wicked 53 feel purpose-built. That problem-solving is the secret sauce behind so many of the details on this truck.

Maker Spotlight — One-Off Bed Panel

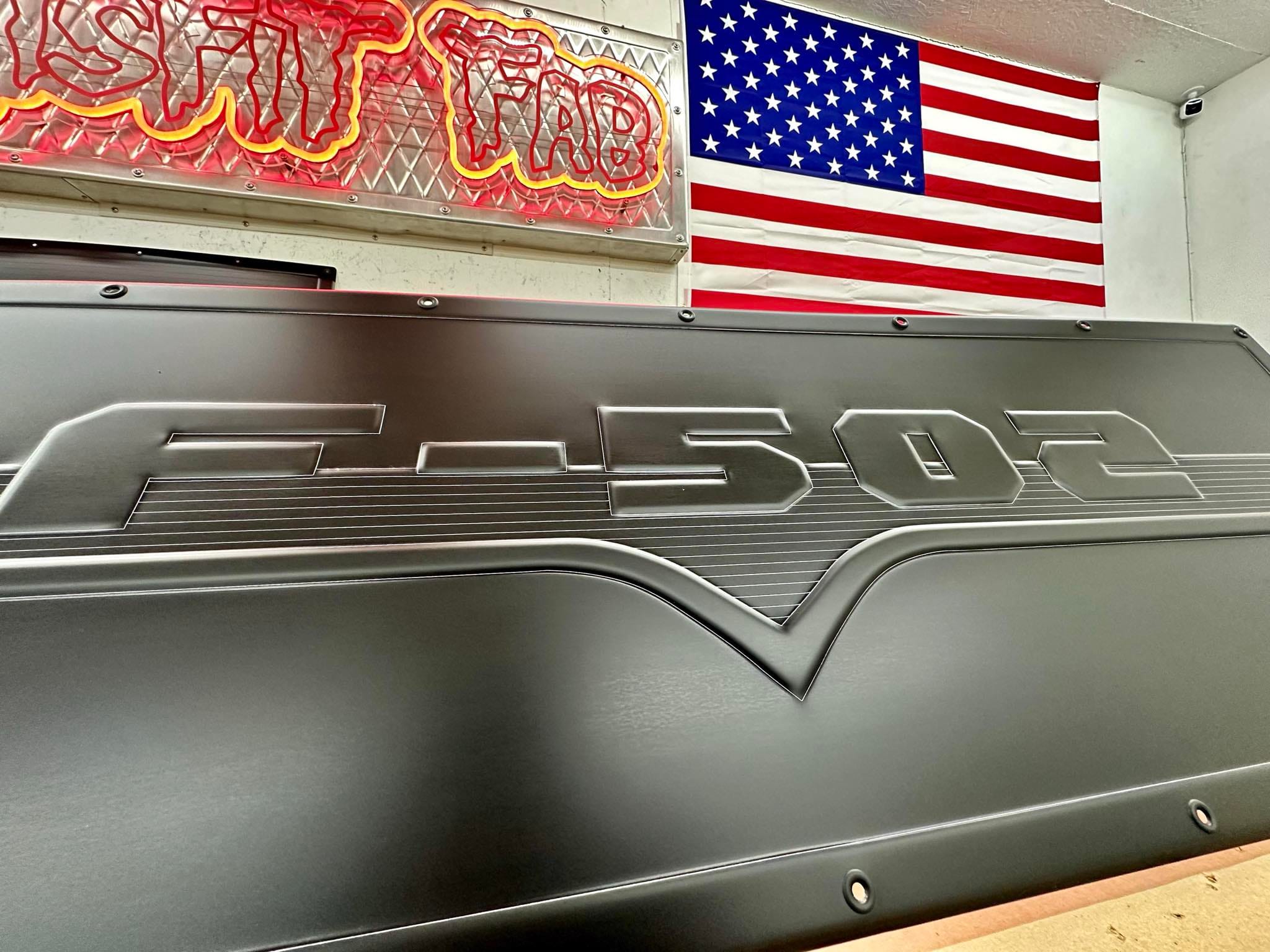

James at Misfit Fabs (TN) created a custom F-502 panel for the bed’s back wall—a clean, machined nod to the 502 that started it all.

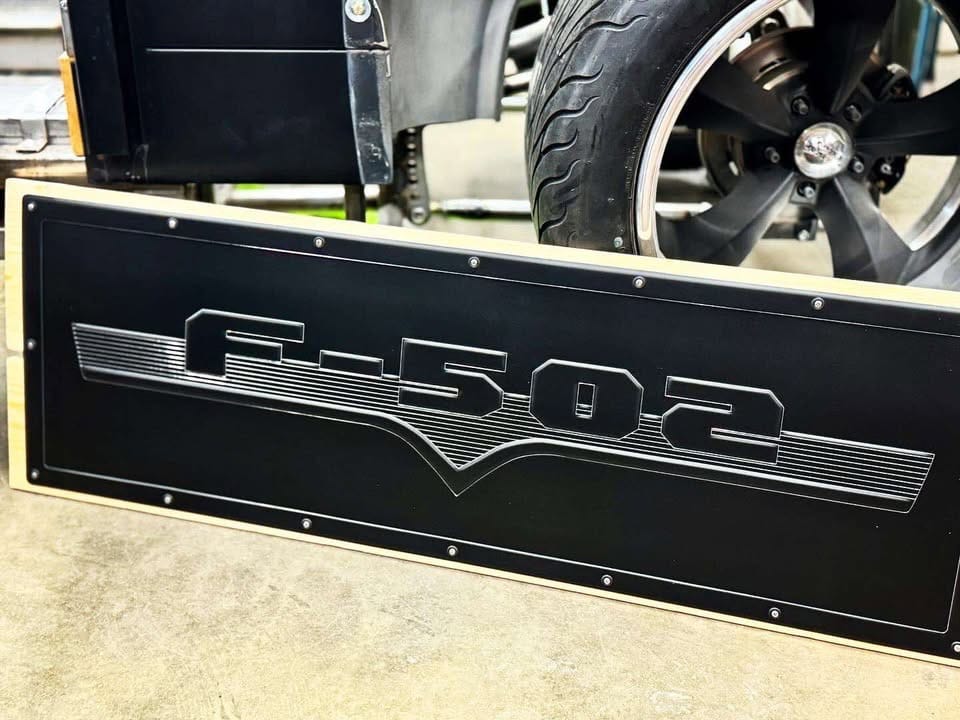

Wicked 53 — custom F-502 bed back-wall panel by Misfit Fabs; machined black plate with linework, rear wheel behind.

Suppliers that kept it moving
For anything not handmade, Tom leaned on Summit Racing as the one-stop source throughout the build. Midwest Early Ford supplied the metal pieces beyond the original cab—key to keeping the sheet-metal side honest. Tom’s fired up to share this feature with the Summit Racing crew and the pro-street crowd—shining a light on the people behind Wicked 53.

Feature in Progress: Updates drop when the wrenches do—pics and notes posted as the build moves. Got a ride with the same scars and soul? Feature Spotlight opens on the 1st.

Build Update, October 22, 2026

Tom checked in this morning with fresh photos and a short note: random stuff, in his words, and the good kind. The truck is deep in the unglamorous middle of a build right now, the part where the work is real and the shine is still ahead of it.

The colors are decided. Tom had a rendering done to work the combo out before committing to it, and he shot a paint sample in the sun to confirm it: dark gray and black, split by a thin orange pinstripe. Loman Rods will do the paint and the reassembly, and Tom is hoping to see color on the truck before the end of the year.

Rendering of the finished Wicked 53 in dark gray and black with an orange pinstripe
The target: the rendering Tom used to decide the colors, F-502 piston mark and all.
Paint sample in dark blue-black and gray with an orange pinstripe, held in sunlight
The paint sample in daylight, three angles of the same decision.
AI-generated vision of the finished Wicked 53 in the shop, dark gray and black with an orange pinstripe
Tom's AI vision of the finished truck, the picture the real one is chasing.

The body side of the story is in these shots. The cab went through the filler stage, got blocked down by hand, and has already sat in the booth covered in primer. It is the slow, dusty part of a build, and it is the part that decides how good the color looks when it finally lands.

The Wicked 53 cab at the filler stage, body filler patches over gray panels
The cab at the filler stage. Every panel gets worked before any of it gets pretty.
Blocking and sanding the primered cab in the shop, front three-quarter view
Blocking the cab down by hand. Slow work, and it shows in the end.
Sanding the cab in the shop, seen from the rear
The same work from the back half. Nothing gets skipped.
The Wicked 53 cab in the paint booth, covered in gray primer
In the booth in full primer, one even coat from nose to tail.
The Wicked 53 cab in the paint booth in primer, rear three-quarter view
The booth from behind. The cab is all one color again, at least for now.

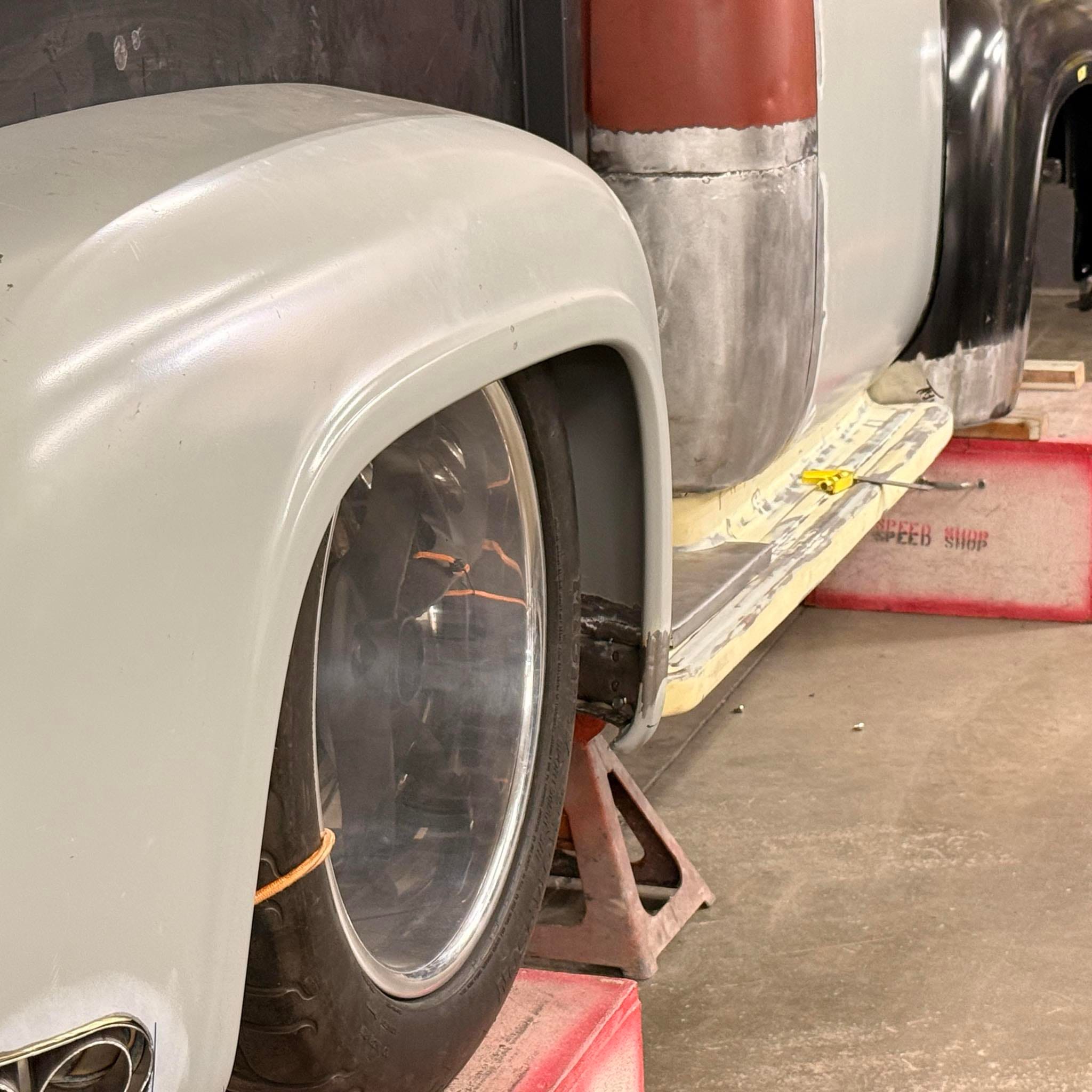

This is how the truck sits in the shop between sessions: mixed primer and bare metal, tubs filled, stance already set.

Wicked 53 in the shop, red-oxide cab and white fenders, up on stands
As it sits: red-oxide cab, white fenders, fuel can riding the running board.
Wicked 53 rear three-quarter in the shop, black bed and white rear fender
The black bed and the primered rear fender, exhaust exit cut and waiting.
Wide view of Wicked 53 in the shop with the bed open over the tubs and chassis
The whole picture from up high, bed open over the tubs and chassis.

Underneath, the chassis work keeps stacking up. The stainless headers are routed through the frame rails, tight and tidy, and the rear chassis shot shows the same story from behind: polished tube work against bare metal, everything placed on purpose.

Stainless headers routed through the frame rails, seen from above the chassis
Headers through the rails, shot from above.
Stainless headers routed through the frame rails, side view
The same tube work from the side, tucked in tight.
Looking straight down into the tubbed bed of Wicked 53 at the exhaust crossovers and chassis
Straight down into the bed: tubs on both sides, crossovers running through the middle.
Rear chassis and polished exhaust work on Wicked 53
The rear chassis, exhaust tucked and finished in stainless.
Stainless crossover pipe assembly clamped in a vise on the workbench
The crossover on the bench, built in stainless before it ever met the truck.
Twin polished exhaust tips exiting through the rear fender of Wicked 53
The exhaust leaves through the rear fender. No tailpipes hanging underneath.
Underbody of Wicked 53 showing the rear axle, 4-link and wide rear tires
Underneath: the rear axle, the 4-link, and a whole lot of tire.

While the cab waits on color, the finished details keep stacking up.

Black painted cab back with the one-off F-502 bed panel on Wicked 53
The one-off F-502 bed panel, painted black and in place behind the cab.
Hand-painted FORD 502 emblems and 502 roundels with paint brushes
The FORD 502 emblems, painted by hand, brushes and all.

Inside, the cockpit is still bare metal and all business. The triple-lever shifter stands where the console will live, and it says everything about how this truck is meant to be driven.

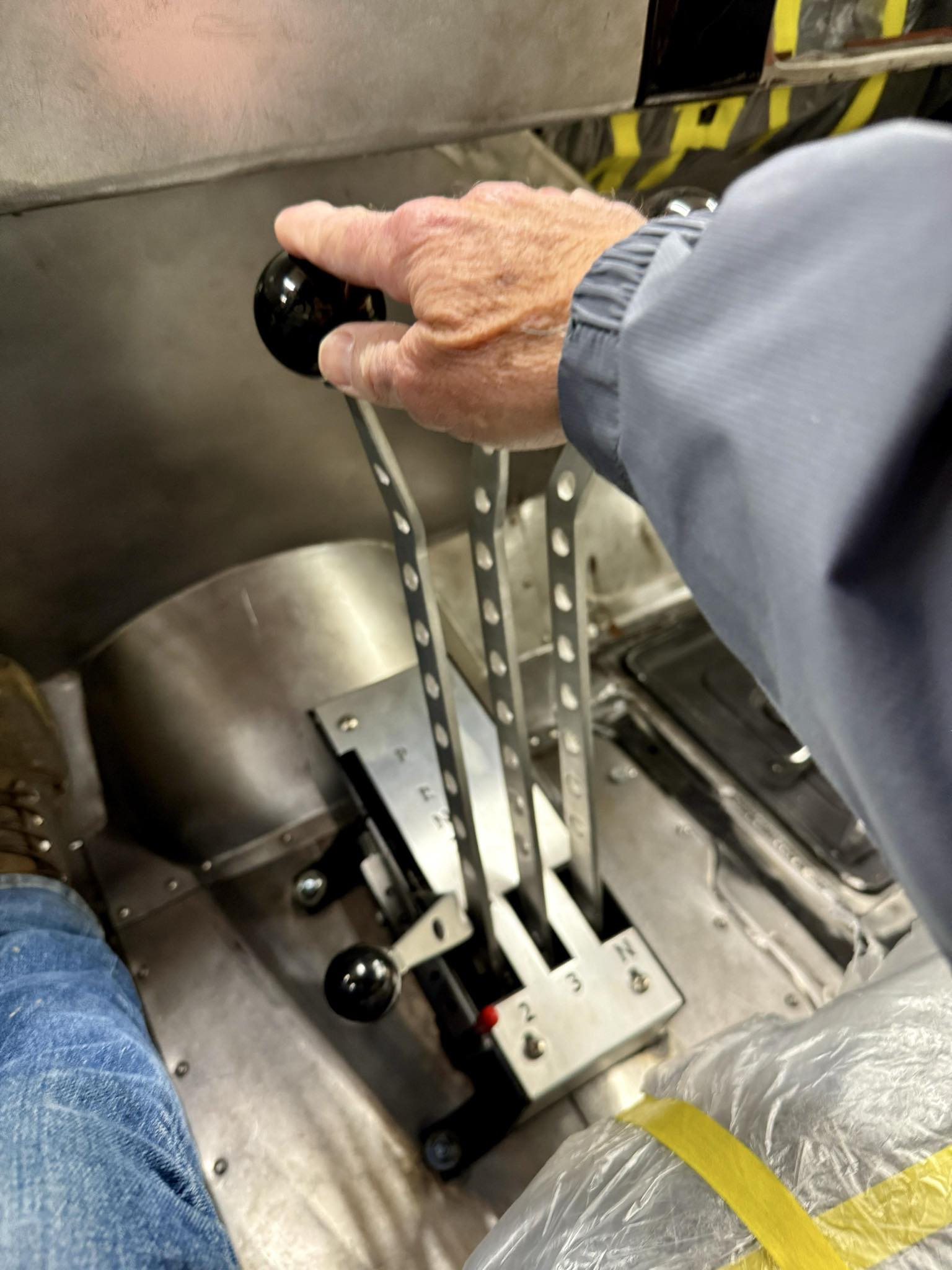

Triple-lever shifter in the bare-metal cockpit of Wicked 53
Three levers, no apologies.

The hauler is ready before the truck is. The F-502 trailer wears the full wrap, and it is already hooked to the white GMC for whenever the truck needs a ride.

The F-502 wrapped trailer, side view with the orange piston graphic
The trailer in full wrap, Loman Rods lettering and all.
Rear doors of the F-502 trailer with the piston graphic and WICKD53 plate
The back doors. The plate says WICKD53.
The F-502 trailer hitched to a white GMC tow truck
Hitched up and ready when the truck is.

Tom also put up a walk-around video, Is she Wicked Yet?, if you want to see the truck in motion. And he has a new home for the build online: wicked53.com, and you can reach him at tom@wicked53.com. Paint is next. When it lands, it lands here first.

Got a build with scars & soul?

Get your ride in front of the tribe or jump into the garage talk. Pick a lane:

Originally featured on SpeedNeeds in September 2025.

Want your car here? Send in your ride — a real car, your photos, your story.

Photos

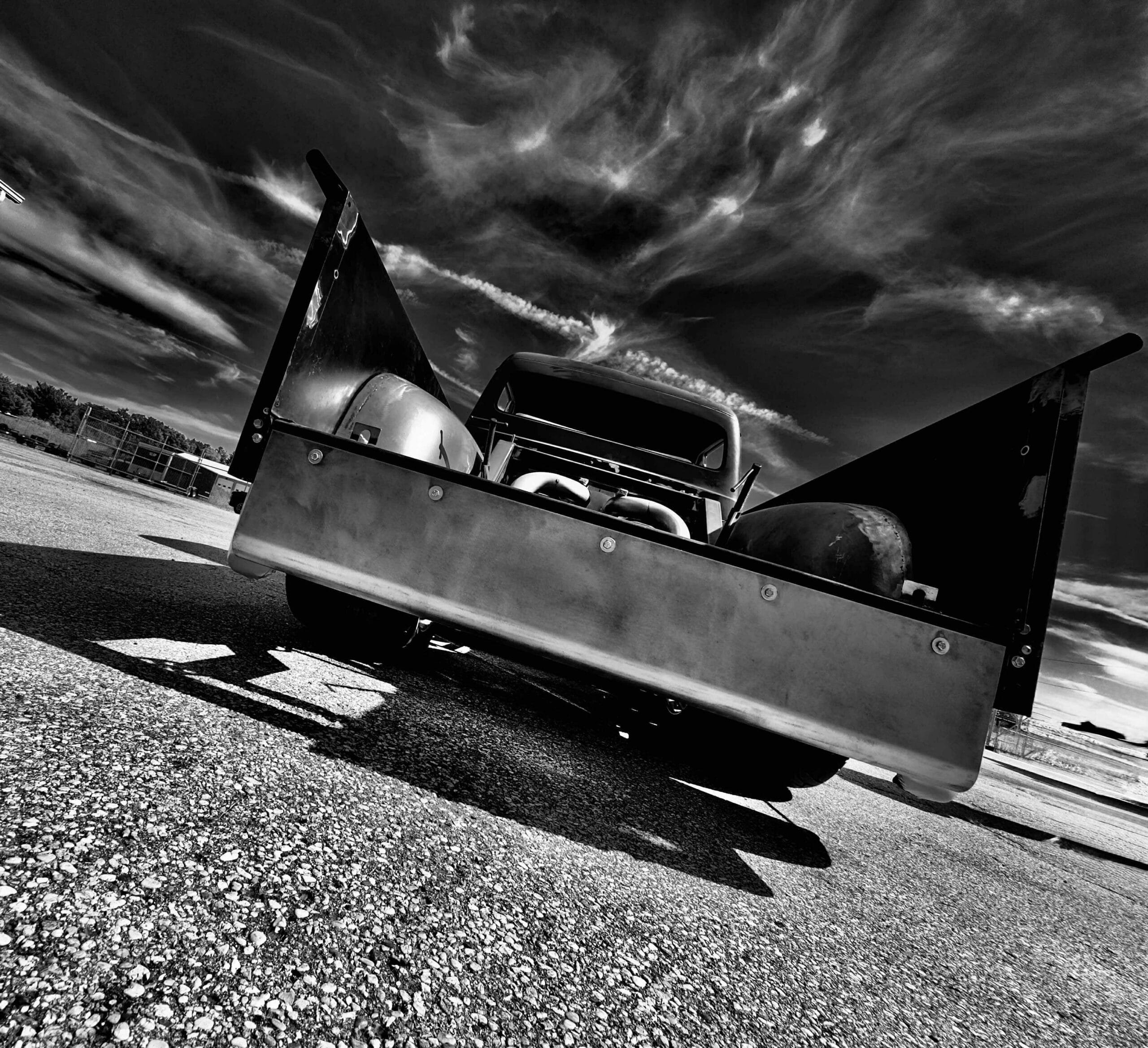

1953 Ford “Wicked 53” tailgate, custom roll pan, wide tires | caption: The view everyone remembers—tailgate down low over big tire.
